General specifications

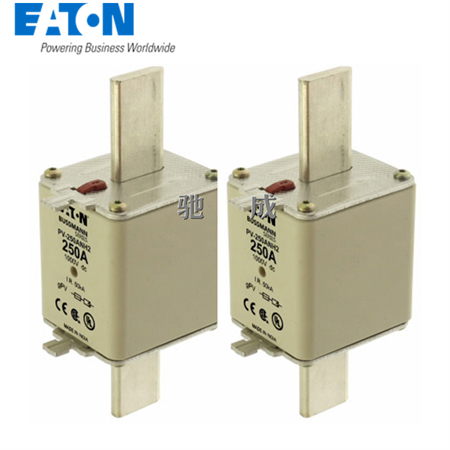

Product Name:  Eaton Bussmann series photovoltaic fuses

Catalog Number:  PV-250ANH2

UPC:  051712497978

EAN:  5027590505871

Product Length/Depth:  137 mm

Product Height:  68 mm

Product Width:  134 mm

Product Weight:  434 g

Warranty:  No warranty

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC 60269
UL Listed
CSA Certified

Electrical rating

Amperage Rating:  250 A

Voltage rating:  1000 Vdc

Watt losses:  38 W

Breaking capacity:  50 kA

Class:  Class gPV

Physical details

Fuse type:  PV-ANH2

Fuse size:  NH2

Fitted with::  Blade without bolt holes

Material:  Ceramic body

Compatible fuse holder

Suitable for:  SD2-D-PV NH Fuse base
