General specifications

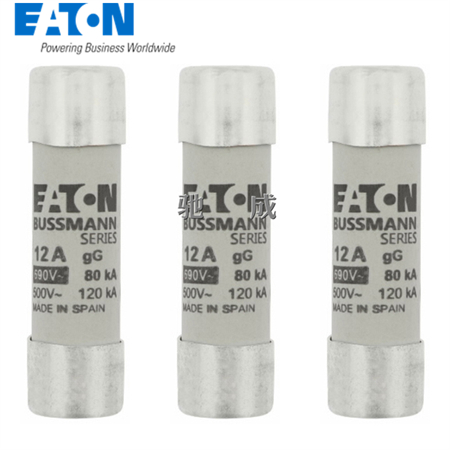

Product Name:  Eaton Bussmann series low voltage cylindrical fuse

Catalog Number:  C14G12

UPC:  051712754361

EAN:  5027590493826

Product Length/Depth:  51 mm

Product Height:  14.3 mm

Product Width:  14.3 mm

Product Weight:  20.3 g

Warranty:  1 year limited

Compliances:  CE Marked
GoST-R
RoHS Compliant

Certifications:  IEC 60269

Product specifications

Fuse indicator:  Other

Construction size:  14 mm x 51 mm

Connection:  Ferrule end x ferrule end

Quantity:  10

Suitable for:  CH14 Modular fuse holder

Material:  Ceramic

Mounting method:  14 x 51 mm CH Modular fuse holder

Release characteristic:  Other

Amperage Rating:  12 A

Frequency rating - max:  62 Hz

Utilization category:  gL/gG (cable protection/equipment protection)

Watt losses:  1.7 W

Fuse type:  C14G

Type:  fuse

Fuse shape:  Cylindrical

Breaking capacity:  80 kA

Fuse size:  14 x 51 mm

Frequency rating - min:  45 Hz

Class:  Class C gL/gG

Voltage rating:  690 V

Application:  for industrial applications
for general purpose use

Voltage type:  AC
