General specifications

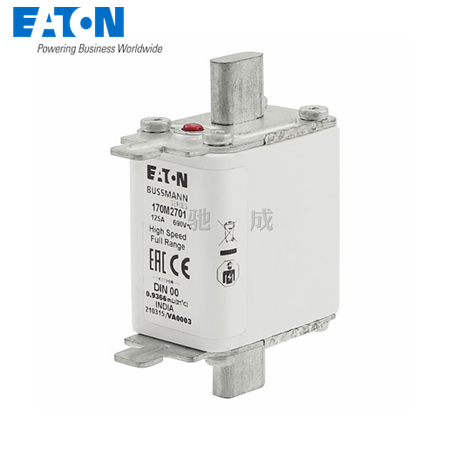

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M2701

UPC:  051712554435

EAN:  5027590442886

Product Length/Depth:  217 mm

Product Height:  65 mm

Product Width:  85 mm

Product Weight:  223.1666667 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  UL Recognized
IEC Rated

Electrical data

Amperage Rating:  125 A

Voltage rating:  690 V (IEC)

Voltage type:  AC

Clearing (I2T):  12000 at 600 V

Pre arc (I2T):  2300

Watt losses:  23 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  00

Fitted with::  Type T Indicator for micro
