General specifications

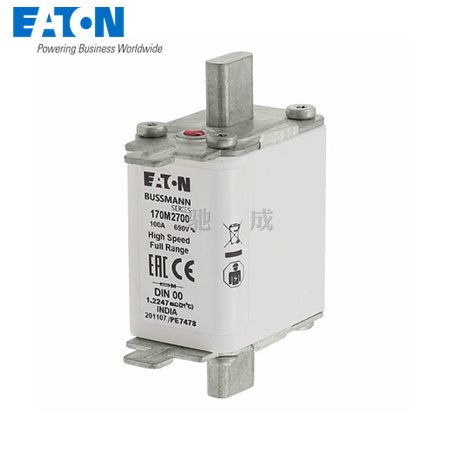

Product Name:  Eaton Bussmann series high speed square body fuse

Catalog Number:  170M2700

UPC:  051712540285

EAN:  5027590442879

Product Length/Depth:  217 mm

Product Height:  65 mm

Product Width:  85 mm

Product Weight:  223.3333333 g

Warranty:  Not Applicable

Compliances:  CE Marked
RoHS Compliant

Certifications:  IEC Rated
UL Recognized

Electrical data

Amperage Rating:  100 A

Voltage rating:  690 V (IEC)

Voltage type:  AC

Clearing (I2T):  6650 at 600 V

Pre arc (I2T):  1250

Watt losses:  19 W

Breaking capacity:  200 kA

Class:  Class aR

Product specification

Fuse size:  00

Fitted with::  Type T Indicator for micro
